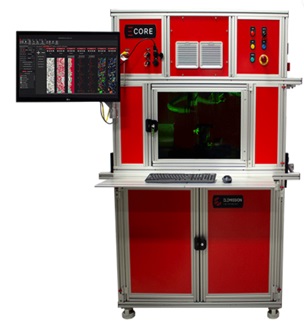

ELEMISSION LIBS ECORE FLEX

CLASS 1 LIBS INSTRUMENT "- Class 1 laser enclosure with safety interlocks and emergency stop - Controlling safety relay - Laser key - Manuel reset - ANZI Z136.1 compliant - Laser safety standard - CSA/UL electrical standard compliant" ENCLOSURE 2 boxes attached with umbilical ANALYSIS CONDITIONS SPATIAL RESOLUTION Factory set ~ 50 micrometers ACQUISITION RATE 1000 measurements per second (1000 Hz) - (OPTION 1300 Hz) SPECTRAL RANGE 220 nm to 930 nm MAXIMUM SAMPLE DIMENSION "- 2 X Half NQ Core (2 X 30 cm) - 4 X 1⁄4 NQ Core (4 X 30 cm) - 5 X Half NQ Core (5 X 45 cm) - 9 X 1⁄4 NQ Core (9 X 45 cm) - 54 pellets with Φ=40 mm (6 X 9 pellets) - 126 pellets with Φ=25 mm (9 X 14 pellets)" WEIGHT 350 kg MAXIMUM SAMPLE WEIGHT 8 kg SURFACE SAMPLING High speed all optical scanning of the surface 40 mm x 40 mm @ 1000 Hz - (OPTION 1300 Hz) SCAN SPEED 1 cm2 at 50 micron resolution in less than 40 seconds – OPTION 30 s @ 1300 Hz SCAN AXES "- Z-stage for focus adjustment - XY-Stage for drill core scanning" SAMPLING VISUALISATION 532 nm green laser pointer for scanning area preview up to 4 cm x 4 cm PLASMA EMISSION SPECTRA "- Achromatic High transmission fiber optics for maximum plasma emission light collection - Independent light collection optics for LIBS plasma emission detection in air" LIBS CHAMBER LIBS chamber equipped with an extraction capability for particle control equipped with HEPA filters DETECTORS LIBS CHAMBER CAMERA Imaging line camera to provide high resolution image of 57 micrometers per pixels LASER Laser wavelength, 1064 nm, 1 mJ, rep rate up to 1000 Hz, 7 nsec (FWHM) pulse width, air cooled lase DATA ANALYSIS LIBS CONTROL SOFTWARE "- LIBS peak integration - LIBS spectra - Continuum and background signal subtraction - LIBS spectra curve fitting - LIBS statistics tracking during multiple laser shot data collection - LIBS signal statistics tracking during multiple laser shot data collection - 2D mapping of the selected elements - Quantitative analysis with linear and polynomial fitting calibration - Advanced calibration model using broadband - Sample library building for sample classification analysis, - Comparative LIBS spectra analysis, PLSR1, Auto PCA imaging that allows you to view the most probable image after an acquisition" SAM ALGORITHM "- Intuitive and easy to train supervised learning algorithm (SAM) - Auto-imaging (unsupervised learning) features including PCA visualisation of LIBS hyperspectral data - Ergonomic graphical user interface for supervised training of minerals and molecular features on a surface - Prediction of unknown images based on the previously built library based on SAM - And many features for exportation of the results as well as customization of mineral colors" ELECTRICAL REQUIREMENTS POWER OUTLET 220-240 / 20 A @ 50-60 Hz COMPUTER "- High performance Intel i7 with Windows 10 Pro - 32 GB RAM, 5 TB SSD (1 TB M.2 and 4 TB SATA) - 24” LCD Monitor, keyboard, and mouse * Subject to change according to model" ENVIRONMENTAL DUST MANAGEMENT Automated HEPA vacuum OPERATING AMBIANT TEMPERATURE Normal laboratory conditions 15 TO 28 °C
