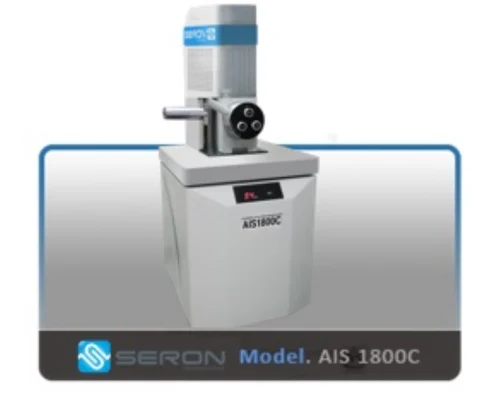

Seron Technologies AIS1800C + EDS Include BSE Detector and Image Analysis & Analyzer Package

Ion Sputter Coater Any air or gas line is required for stage supporter for anti-vibration Vacuum 5.0 X 10-2 Torr Ion Current: 1 to 10mA (1mA/step) Target : Au (Dia. 50mm X 0,1t Time unit rage : 1 to 600 sec (5sec/step) Power : 220VAC, single Phase Power : 220VAC, single Phase Dimension(mm) : 250(W)X210(D)X230(H) Chamber : 140(D)X100(H)mm Sample Stage: Ø50 X30mm(H) Weight : Approximately 19kg (Excluding R.P) Vacuum pump : 100l EDS System from Oxford Xplore 15 with AztecOneLive • 15 mm2 Sensor sizes (Xplore High throughput Silicon Drift EDS Detector) • SATW Light Element Window, for detection of elements from boron • Resolution guaranteed on customers microscope: • MnKα (129eV @100,000cps) X1 Pulse Processor and Imaging Electronics X1 is the latest generation pulse processor with fully integrated microscope digital control and image capture. X1 uses fully digital pulse processing for accurate handling of very high count rates. Ethernet high speed communications connect with the analyser PC • Digital pulse processing and control for 1 EDS detector • 2 imaging inputs • Microscope X,Y beam control • Power on, standby, reset button • Status indicator • Internal Temperature sensors • Built in diagnostic voltage and current measurements
