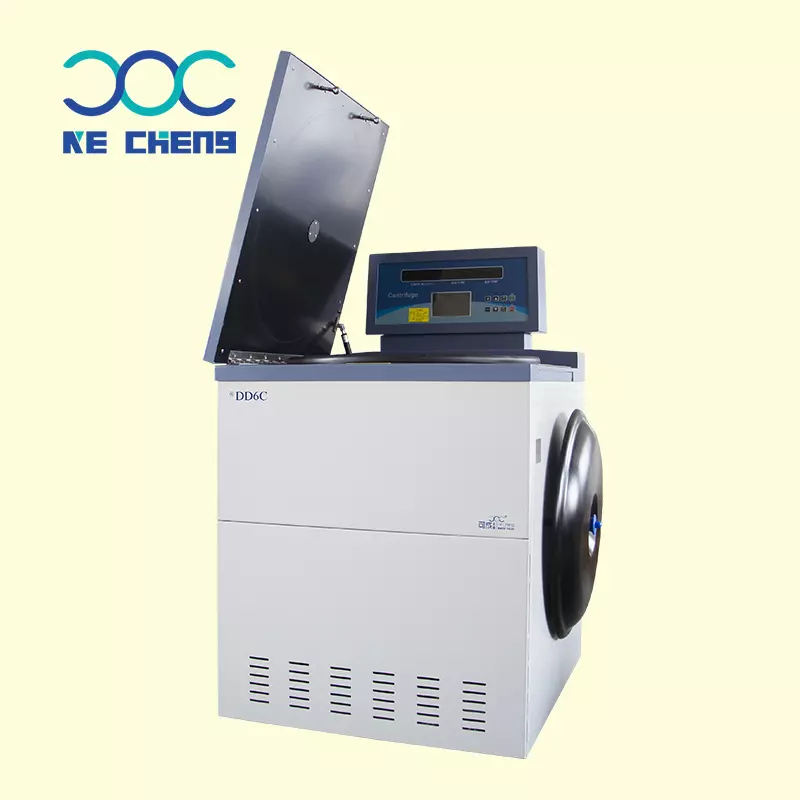

DD6C Floor Large Capacity Low Speed Centrifuge
DD6C Floor Large Capacity Low Speed Centrifuge
Technical Parameter：
Intelligent control system
◆ Speed up/down mode can be set, and automatically calculate the RCF.
◆ Program group shortcut key, large storage space, can store 99 groups of program;
◆ Electric door lock can auto open the chamber door after the centrifugal operation.
◆ 10 gears acceleration /deceleration with linear drive.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Model | DD6C | ||
Max Speed | 6500rpm | Power | 1500W |
Max RCF | 6680×g | Noise Level | ≤ 65dB（A） |
Max Capacity | 6×1000ml | Size | 840×730×1240 (mm) |
Timer | 1s～23h59min | Net Weight | 190kg |
Revolutions/min | ±10r/min | Rotor automatic recognition | Yes |
Voltage | AC 220±22V 50Hz 30A | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 6×250ml | 6500rpm | 6610×g |
2 | 6×300ml | 6500rpm | 6610×g | ||
2 | 3 | 6×500ml | 6000rpm | 6680×g | |
Swing-out rotor | 3 | 4 | 6×1000ml(Round bucket) | 4200rpm | 5100×g |
5 | 6×1000ml(Square bucket) | 4200rpm | 5100×g | ||
6 | Automatic uncap 168*2~7ml （blood collection tube） | 4200rpm | 5100×g |
* All products can be customized, designed and produced according to customer requirements.
